TR-UVGA transition module

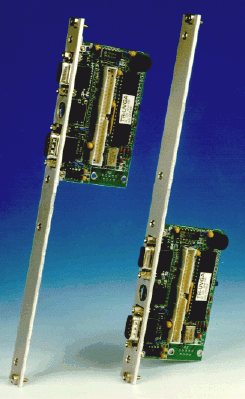

TR-UVGA (click to enlarge)
Description - Applications - Features - Options - Software - Specifications
Description
The TR-UVGA transition module the physical interconnection between the IP-SVGA / IP-UVGA IndustryPack graphic modules and a monitor, keyboard, and mouse, providing industry standard connectors and data buffers for the RS232 serial port and line terminations for the monitor and keyboard ports.
The TR-UVGA is a low cost module that fits behind a standard 3U or 6U front panel compatible with any DIN41612 subrack. Mounted in a slot adjacent to the IndustryPack carrier, interconnection to the IP-SVGA / IP-UVGA module is via a 50 way flat ribbon cable, and industry standard connectors are provided on the front panel for the peripherals. Both analogue and TTL signals are available and there is also a buzzer and a SIL 16 way header designed to accept an 8 x 8 matrix keyboard. As well as bringing the peripheral connectors conveniently onto the front panel, by using the TR-UVGA the serial ports on the Graphic IP's host carrier are freed up for other uses.
Extensive software support is a key feature. Software drivers for all major operating systems are available. Both two and three button mice are fully supported, with the mouse driver automatically converting the data packet format depending on the type of mouse connected. Mouse button functions can be swapped in software. All keys on a standard PC-AT keyboard can be (re)programmed on the fly to produce any character or string up to 63 character long, and software drivers for all major operating systems are available.
Applications
- Development systems
- Man-machine interfaces
- Mimic panels
- Test and configuration
Features
- 3U or 6U versions
- 1:1 ribbon cable to IP-xVGA modules
- Industry standard connectors for monitor, mouse, and keyboard
- Analogue and TTL signals available
- Additional SIL 16 way connector for 8x8 matrix keypad (optional)
- Buzzer (optional)
Options
- VGA connector only
- Extended version with buzzer, RGB connector, and 8x8 keypad connector
- 3U front panel or 6U front panel (J1 or J2 mounting)
- Customised versions or front panels available.
Software
Device drivers are available for:
- G-Windows
- MGR
- OS-9
- pSOS+
- VxWorks
- VMEexec
- X-Windows
Please ask if you need support for other operating systems!
Specifications
| TR-UVGA specifications | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Interface | 1:1 ribbon cable to IP-SVGA / IP-UVGA version 3.00 or higher | ||||||||||||||||||||||
| Connectors | 9-way sub-D for two or three button serial mouse 15-way sub-D for CRT monitor 6-way mini-DIN for PC-AT keyboard 9-way sub-D for TTL RGB 16-way SIL for 8x8 matrix keypad |
||||||||||||||||||||||
| PCB dimensions | 100x70 mm | ||||||||||||||||||||||
| Power | 5V @ 200 mA typical | ||||||||||||||||||||||
| Environmental | 0-70 C Humidity 95%, non-condensing |
||||||||||||||||||||||
| Order codes |
|
||||||||||||||||||||||
