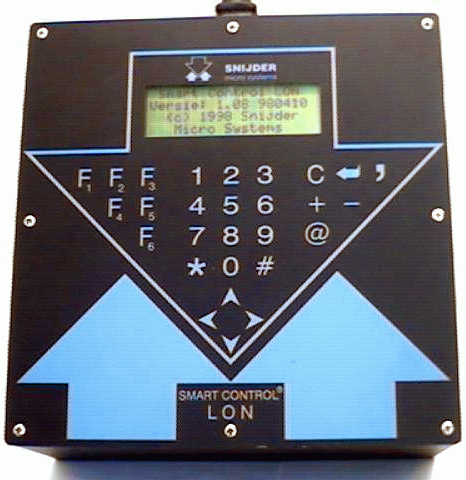

SC-LON Controller unit
Description
The SC-LON controller is a flexible unit designed around the Neuron 3150 chip which can operate either as a slave in a LON network or as a standalone controller.
When operating in a networked environment, the network consists of a number of slave control units (SC-LONs) and one PC-based network master (PC-LON). The PC-LON can control the SC-LONs and retreive status and event data from them.
Features
- Neuron 3150 CPU
- FTT10 transceiver
- 4x thermocouple isolated input
- 4x analog isolated input
- 8x digital isolated input
- 8x digital isolated output
- Keypad with 28 keys
- 4x20 character-based LCD
- Real Time Clock and battery-backed SRAM
- Up to 256 KB SRAM for non-volatile storage of data.
- Onboard EEPROM
Specifications
| SC-LON specifications | |
|---|---|
| Controller | Neuron 3150 CPU |
| LON network transceiver | FTT10 |
| I/O lines | 4x thermocouple isolated input, type J 4x analog isolated input 8x digital isolated input 8x digital isolated output |
| Keyboard | 28 keys |
| Display | 4x20 character-based LCD |
| Power | 230 VAC / 110 VAC |
| Environmental | 0-70 C Humidity 95%, non-condensing |
| Dimensions | 180x180x85 mm |
| Order code | SC-LON |
