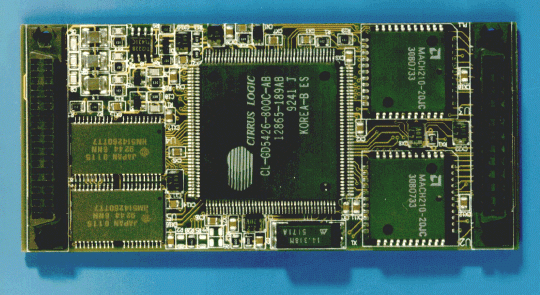

IP-UVGA (click to enlarge)
Description - Applications - Features - Options - Software - Specifications
Description
The IP-UVGA / IP-SVGA modules are low cost, IndustryPack compatible, high perfomance video controllers. These modules are a replacement for SBS' IP-SVGA module. They may be used for simple text displays, man-machine interfaces or high quality graphics in a variety of OEM applications.
Despite their small size (46 x 99 mm) the IP-UVGA / IP-SVGA modules deliver outstanding performance and the extensive software support available allows for easy integration into existing or new products. The bit-mapped display memory can be accessed directly by the host CPU at very high speeds using an advanced write buffer design. The modules feature a fully programmable oscillator which makes it possible to accomodate several dot clocks, resolutions and number of colours under software control. Careful hardware design guarantees optimal usage of the video processor's resources, whereas the on-chip BitBLT engine takes care of moving blocks of data over the screen at amazing speeds.
Applications
- Low-cost text screen
- Man-machine interfaces
- Process visualisation
- Applications requiring multiple displays on one CPU
- Replacement for SBS' IP-SVGA module
Features
- IndustryPack compatible module
- VGA compatible output
- 512 KB or 1 MB video memory
- Programmable resolutions up to 1280x1024
- RAMDAC 24 bit
- Low power CMOS design
- Advanced high speed write buffers
- Extensive 68xxx software support
- Hardware memory tests
Options
- 512 KB or 1 MB video memory
- 32 MHz operation
- TR-UVGA transition module with mouse, keyboard support
Software
G-Windows, MGR, OS-9, X-Windows
Specifications
| IP-UVGA / IP-SVGA specifications | |||||
|---|---|---|---|---|---|
| Bus | IndustryPack compatible, single size | ||||
| Video processor | Cirrus Logic GD 5428 | ||||
| Video output | Analogue & digital | ||||
| Video memory | 512 KB (IP-SVGA) 1 Mbyte (IP-UVGA) |
||||
| Memory mode | Linear and planar | ||||
| Registers | 64 byte short I/O | ||||
| Interrupts | End of field, mouse, keyboard | ||||
| RAMDAC | 24 bit | ||||
| Dot clock | 80 MHz max | ||||
| Screen refresh | 60/70/72/87 Hz | ||||
| Graphic modes | 320x200 16.8M colours 640x480 256 colours (IP-SVGA), or 16.8M colours (IP-UVGA) 800x600 256 colours (IP-SVGA), or 32K/64K colours (IP-UVGA) 1024x768 16 colours (IP-SVGA), 256 colours (IP-UVGA) 1280x1024 16 colours |
||||
| Text modes | 40/80/100/132 columns 8x8, 8x16, 9x16 pixel character cells |
||||
| Hardware cursor | 32x32, 64x64 pixels | ||||
| Dimensions | 99x46 mm | ||||
| Power | 5V @ 0.5A max | ||||
| Environmental | 0-70 C Humidity 95%, non-condensing |
||||
