IP-I2C module
Description

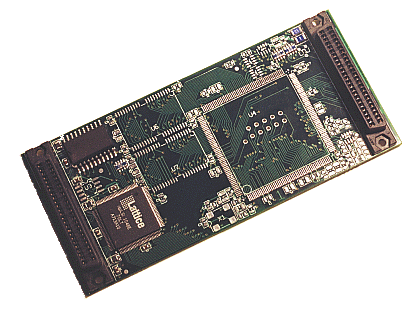

The IP-I2C module is a single slot IndustryPack compatible module for driving I2C slave devices, based on the PCF8584 I2C-bus controller from Philips. The IP-I2C module uses the IP-ULCD PCB.
The IP-I2C module can be connected directly to Snijder Micro Systems' TR-UVGA transition modules via a 50-way flat ribbon cable. The TR-UVGA module contains all of the connectors and additional hardware needed to connect a serial port (e.g. mouse) and an IBM PC compatible keyboard.
Features
IndustryPack:
- Single size IndustryPack module
- 8 MHz IndustryPack bus interface
- Requires no IP memory space
- No hardware configuration needed
- External +5V and +12V power fused
I2C:
- Integrated PCF8584 I2C-bus controller
- Hardware support for PCF8584 interrupt-driven operation
- Hardware support for external I2C-bus SIN* interrupt signal
- I2C-bus pull-up resistors onboard or external
Options
- Also available without software support for use with 3rd party software.
Specifications
| IP-I2C specifications | |||||
|---|---|---|---|---|---|
| Host interface | IndustryPack compatible, single size, type I 8 MHz IndustryPack bus operation ID PROM Data according to Format I |
||||
| I2C interface | Based on Philips PCF8584 I2C-bus controller Support for PCF8584 hardware interrupts Support for external I2C interrupts |
||||
| Power | 5V @ 1A max, +12V @ 0.5A max F1 is 1A fuse for 5V to transition module F2 is 0.5A fuse for 12V to transition module |
||||
| Environmental | 0-70 C Humidity 95%, non-condensing |
||||
| Order codes |
|
||||
